PHH024

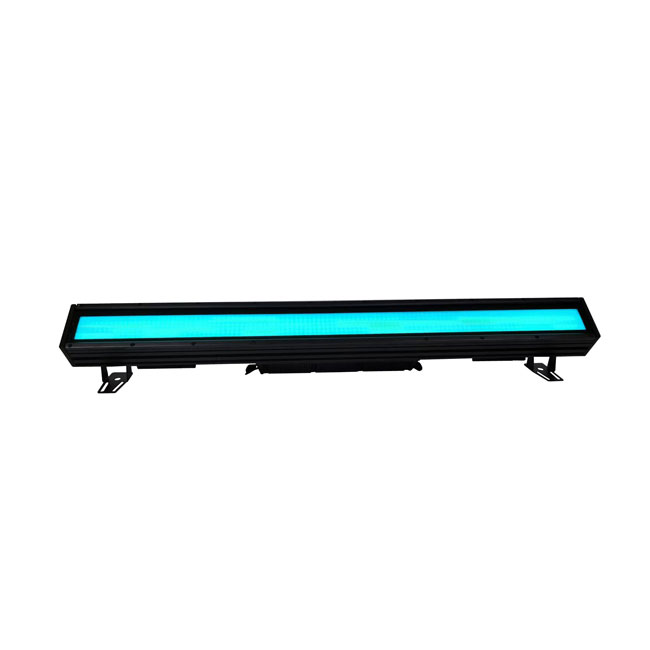

784PCS Waterproof LED Colorful Bar Light

Product Details

+ The middle is super bright white light,bi-directional water-flow effect,divided into 16 sections. It can burst out dazzling exposure strobe effect.
+ Each RGB side is divided into 16 sections,32 sections in total,with gradual change and water-flow effect.
+ The combination of white color and RGB aura color can show rich and colorful special effects,which is a rare product to bake the atmosphere of joy and celebration.
+ Powerful high-output strobe effect.
+ Electronic atomization effect.

+ 0-100% smooth dimming function(4 dimmer curve- Linear, Square Law, Inv SQ Lawor S Curve).
+ Built-in splicing pins for fast splicing and alignment.
+ Protection rate: IP65.

Voltage: AC100-240V, 50-60Hz.

Light source: 112pcs 3W high brightness white SMD LEDs, 672pcs 0.3W 5050 RGB 3-in-1 SMD LEDs.

Strobe power: Max.420W.

Lifetime: LED lifetime up to 50,000 hours.

Beam angle (white): 54 degree.

Beam angle (aura RGB): 50 degree.

Dimming: 0-100% linear dimming.

Strobe: 0-20 times / sec.

Control mode: DMX512 / auto / master-slave / manual control.

DMX channels: 7CH/15CH/17CH/21CH/33CH/39CH/65CH/68CH/70CH/112CH/117CH 11 channel modes.
Support RDM signal （Art-Net, sACN optional）.

Power interface: PowerCon input / output.

Housing: Die-cast aluminum and pure aluminum with folderable clamp.

Dimension: 100 * 14 * 9cm.
Size:110 * 19.5 * 32cm.

N.W:8.0kgs.
G.W:9.0kgs.
