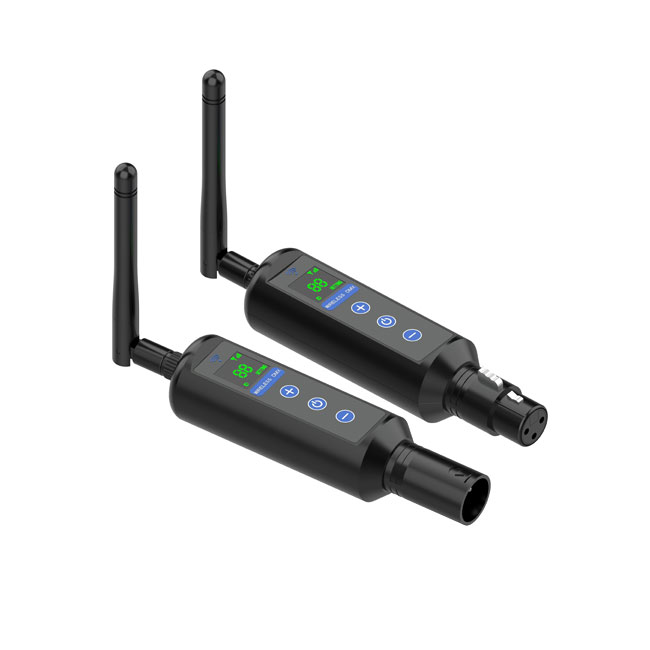

+ The DMX wireless transceiver is used to send and receive the data of DMX 512 standard protocol by wireless.

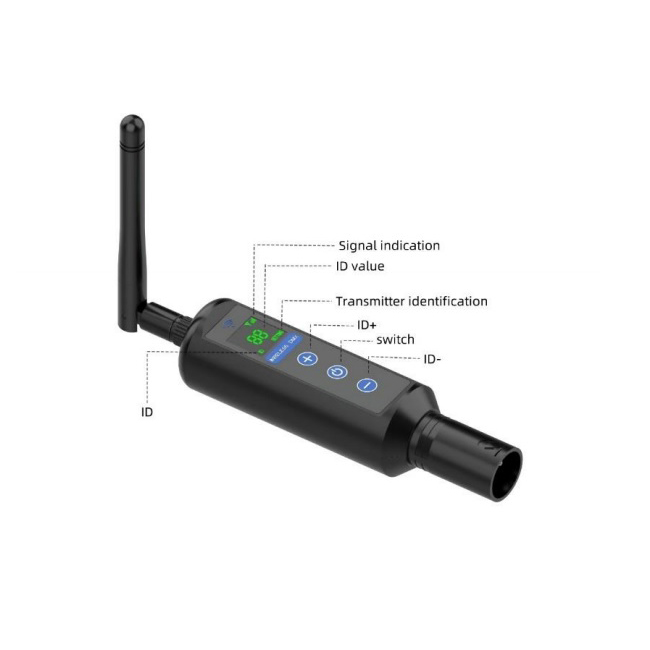

+ OLED display.
+ 126 channels jumping frenquecy automaticly, high anti-jamming ability,to ensure works reliability.
+ 20 groups ID code settable, User can use 20 groups individual wireless net without any interfere each other in the same place.
+ Input voltage:5VDC 1A  MIN.
+ Modulation mode:GFSK.
+ Communication distance:600M, LoS, 3m over ground level.
+ Work frequency section 2.4G ISM,126 channels frequency section.
+ Max transmitting power rate:23dBm.
+ Receiver sensitive:-94dBm.
+ Signal port:3-pin male plug (transmitter),3-pin female plug (receiver).

Technical specifications:
Power input: TYPE-C DC 5V 1A.
Power consumption: 5W max.
Data output / input:3-pin XLR male / female socket.
Packing size:17.5*9.5*7.5 cm (1pc).
G.W:1.0kgs (1pc).
